Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers

Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers are low skew, a single high-speed input to four output clock buffers. These devices feature an additive phase jitter of sub 50fs and input/output clock frequency up to 200MHz, making them ideal for networking clocks. Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers are offered in an 8-pin SOIC or 8-pin DFN package and have an extended temperature range of -40°C to +105°C.

Features

  • 50fs low additive phase jitter RMS
  • Extremely low skew outputs (50ps)
  • Packaged in 8-pin SOIC or small 8-pin DFN
  • Input/output clock frequency up to 200MHz
  • Ideal for networking clocks
  • 1.8V to 3.3V operating voltages
  • Output enable mode tri-states outputs
  • Advanced, low-power CMOS process
  • -40°C to +105°C temperature range
  • Pb free

Block Diagrams

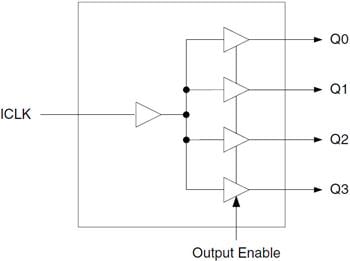

Block Diagram - Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers

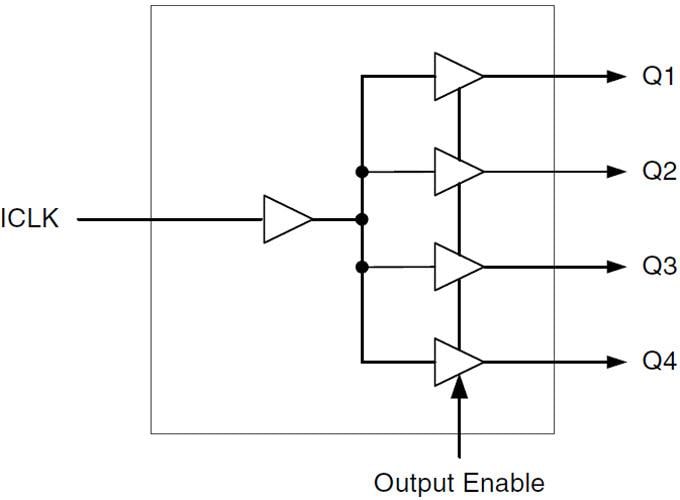

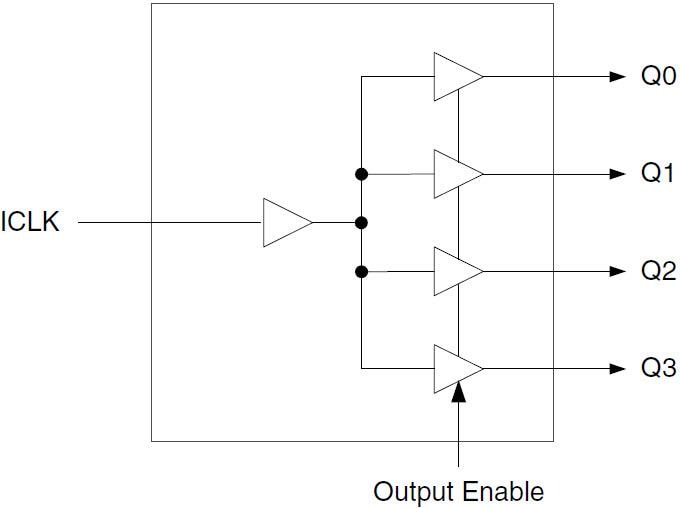

Block Diagram - Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers
