Advantech IPS-D22A60W DIN-Rail Power Supplies
Advantech IPS-D22A60W DIN-Rail Power Supplies feature a compact design with 60W output and high efficiency of up to 88% @230VAC. These power supplies operate from 85VAC to 264VAC or 100VDC to 375VDC input range and -20°C to 70°C temperature range. The IPS-D22A60W power supplies support Over Voltage Protection (OVP), Short-Circuit Protection (SCP), Over Current Protection (OCP), and Over Temperature Protection (OTP).
Features
- Compact design with 60W output
- 85VAC to 264VAC or 100VDC to 375VDC input range
- High efficiency up to 88% @230VAC
- 47Hz to 63Hz input frequency range
- Cold start at -30°C
- Supports OVP/SCP/OCP/OTP
- LED indicator for DC OK
- ±1% accuracy
- <1.8A @115VAC and <1.0A @230VAC input current range
- -20°C to 70°C operating temperature range

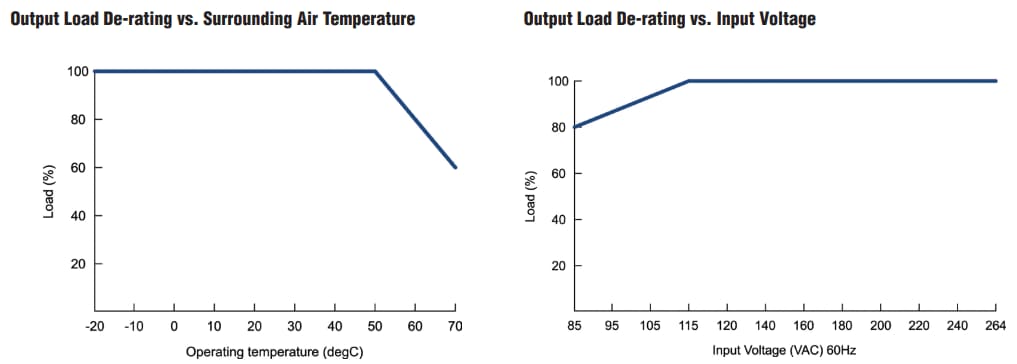

Performance Graph

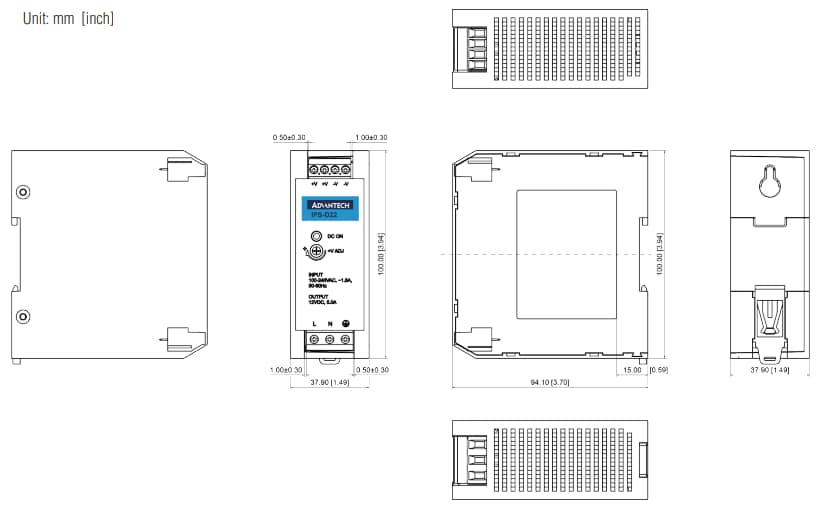

Dimension Diagram
