American Bright LED APC-817 DC Input Phototransistor Couplers

American Bright LED APC-817 DC Input Phototransistor Couplers provide a stable isolation feature with a robust coplanar double mold structure. These phototransistor couplers offer 5000VRMS high isolation voltage and CTR flexibility. The APC-817 DC input phototransistor couplers feature a 35V collector-emitter voltage, a 6V emitter-collector voltage, a 50mA collector current, and 150mW output power dissipation. These phototransistor couplers operate within the -55°C to 110°C temperature range and are RoHS, REACH, and MSL Class 1 compliant. The APC-817 DC input phototransistor couplers are packaged in a plastic DIP4 and boast UL, VDE, CQC, and cUL certifications. Typical applications include Switched-Mode Power Supplies (SMPS), programmable controllers, household appliances, and office equipment.

Features

  • 5000VRMS high isolation voltage
  • CTR flexibility
  • DC input with transistor output
  • -55°C to 110°C operating temperature range
  • RoHS, REACH, and MSL Class 1 compliant
  • Plastic DIP4 package
  • UL - UL1577
  • VDE - EN60747-5-5 (VDE0884-5)
  • CQC - GB4943.1 and GB8898
  • cUL- Component Acceptance Service (CSA) notice No. 5A

Specifications

  • Input:
    • 60mA forward current
    • 1A peak forward current
    • 6V reverse voltage
    • 100mW input power dissipation
  • Output:
    • 35V collector-emitter voltage
    • 6V emitter-collector voltage
    • 50mA collector current
    • 150mW output power dissipation

Applications

  • Switched-Mode Power Supplies (SMPS)
  • Programmable controllers
  • Household appliances
  • Office equipment

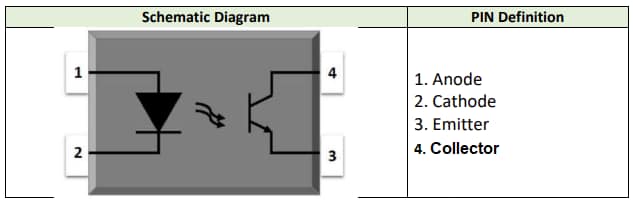

American Bright LED APC-817 DC Input Phototransistor Couplers

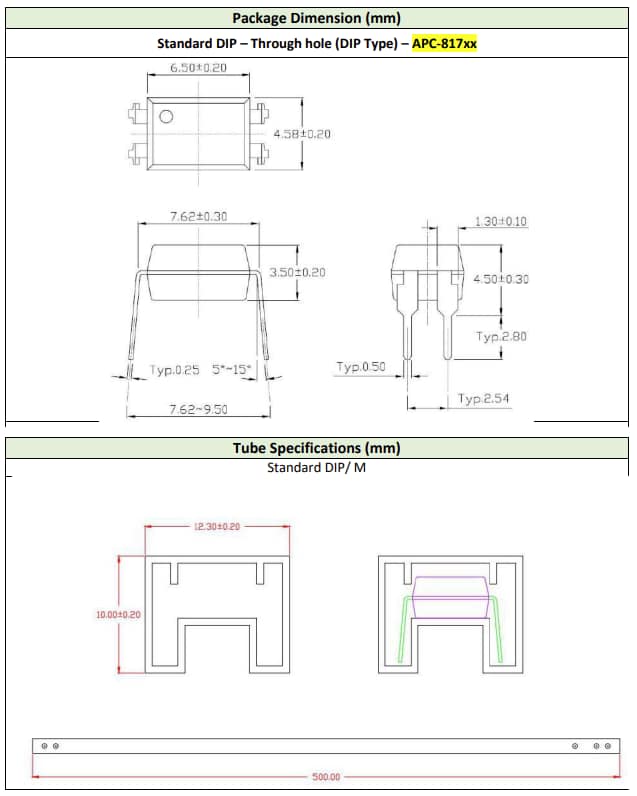

Mechanical Drawing - American Bright LED APC-817 DC Input Phototransistor Couplers

Additional Resources

View Results ( 4 ) Page
Mã Phụ tùng Pd - Tiêu tán nguồn Điện áp cách ly Tỷ số truyền dòng If - Dòng thuận Ff - Điện áp thuận Điện áp cực góp cực phát tối đa Dòng cực góp tối đa Điện áp bão hòa cực góp cực phát tối đa Thời gian tăng Thời gian giảm Vr - Điện áp ngược
APC-817B1-SL 200 mW 5000 Vrms 260 % 10 mA 1.24 V 35 V 50 mA 200 mV 3 us 4 us 6 V
APC-817A1-SL 200 mW 5000 Vrms 160 % 10 mA 1.24 V 35 V 50 mA 200 mV 3 us 4 us 6 V
APC-817C1-SL 200 mW 5000 Vrms 400 % 60 mA 1.24 V 35 V 50 mA 200 mV 3 us 4 us 6 V
APC-817D1-SL 200 mW 5000 Vrms 600 % 10 mA 1.24 V 35 V 50 mA 200 mV 3 us 4 us 6 V
