Epson Timing TSX-3225 Series Miniature MHz Range Crystal Units
Epson TSX-3225 Series Miniature MHz Range Crystal Units are SMD that offer a frequency range of 16MHz to 48MHz and a miniature, low profile size of 3.2 x 2.5 x 0.6t (mm). The TSX-3225 Series offers a Fundamental overtone order and is ideal for mobile phones, Bluetooth, W-LAN ISM band radio, and as a clock for MPU.
Features
- Fundamental overtone order
- 3.2mm x 2.5mm x 0.6mm Package size
Applications
- Mobile phone
- BLUETOOTH®
- W-LAN ISM band radio
- Clock for MPU

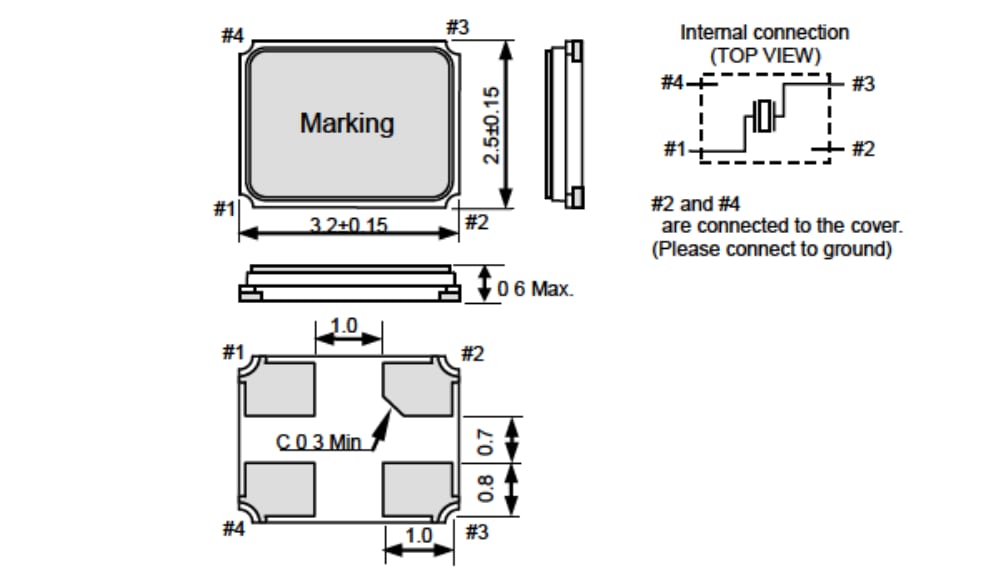

Dimensions (mm)
