Melexis 2-,3-, & 4-Wheeler Light Electric Vehicles
Melexis 2-,3-, and 4-Wheeler Light Electric Vehicles application provides a solution from battery management constraints (sufficient power, longevity, and safety) to drive train efficiency and personalization. Battery and management are the key differentiators in this increasingly complex world of e-vehicles. Discover Melexis products for user applications, including current sensors, position sensors, latch and switch, and tire pressure monitoring sensors.

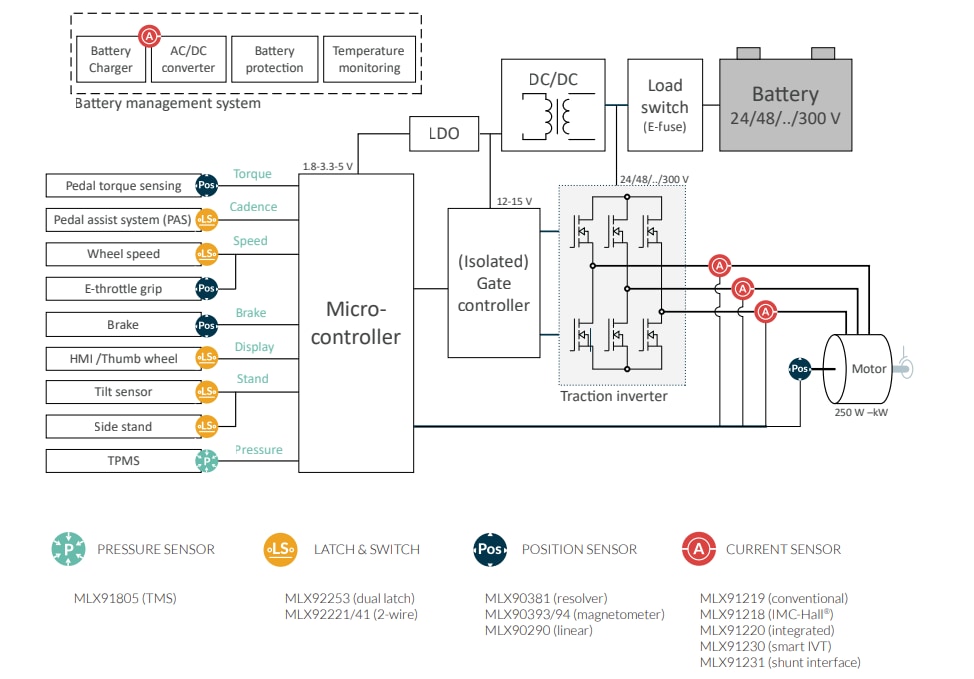

Block Diagram
Current Sensor ICs
Melexis MLX91208 IMC-Hall® Current Sensors
Features Triaxis™ Hall technology with small size application design and simple construction.
Melexis MLX91209 Hall Effect Current Sensor
Programmable high-speed Linear Hall IC, with a sensitivity range from 5mV/mT to 150mV/mT.
Melexis MLX91218 Extra High Field IMC-Hall® Current Sensor
Dual overcurrent detection (OCD) functionality, a 3.3V to 5V supply, and an improved SNR.
Melexis MLX91219 High-Speed Hall Current Sensors
Monolithic sensors that are sensitive to the flux density applied orthogonally to the IC surface.
Melexis MLX92211 AEC-Q100 Digital Hall Latch ICs
Designed for automotive and industrial applications requiring robust and precise magnetic sensing.
Features
- High accuracy for motor efficiency
- Dual over-current detection (internal and external)
- Factory-calibrated
Applications
- Battery management
- Motor feedback loop

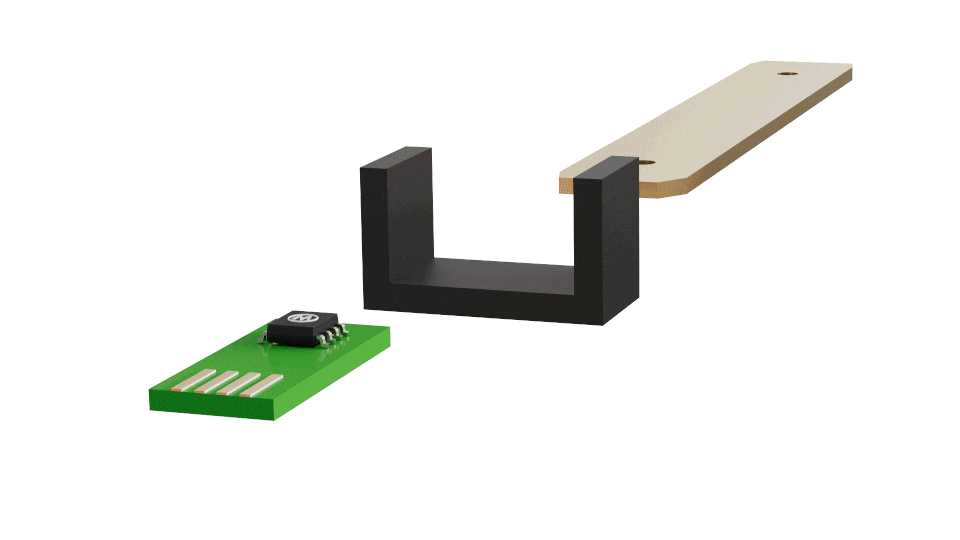

Mounting on a shielded bus bar
Position Sensor ICs
Melexis MLX81334 Smart LIN Motor Driver
Gen-3, 1A-rated, all-in-one module that optimizes EV thermal valves and expansion valves.
Melexis MLX90381 3D Magnetic Resolvers
Measure rotational speeds of 50’000 e-rpm (Electrical at Hall plates).
Melexis MLX90394 Micropower Triaxis® 3D Magnetometer
3-axis magnetometer suitable for many position sensor applications using Triaxis Hall Technology.
Melexis MLX90395 Triaxis® Magnetometer Nodes
Miniature sensor ICs capable of measuring 3D magnetic fields, temperatures, and supply voltages.
Melexis MLX90421 Triaxis® Magnetic Position Sensors
Designed for automotive applications with an operating temperature range from -40°C to 160°C.
Melexis MLX90423 Triaxis® Magnetic 3D Position Sensors
Designed for use in cost-sensitive automotive applications and industrial implementations.
Melexis MLX90425 Triaxis® 360° Rotary Position Sensors
Offers up to 5mT stray field immunity, supports 360° rotary magnet motion with analog or PWM output.
Melexis MLX90510 High-Speed Inductive Resolver IC
Designed for absolute rotary motion/position sensing in safety-critical automotive applications.
Melexis MLX90513 Automotive Inductive Position Sensor
Engineered for absolute rotary & linear motion/position sensing in automotive & industrial apps.
Melexis Cảm biến chốt kép hiệu ứng Hall MLX92253
Integrates a voltage regulator, two Hall sensors, and two open-drain outputs in a single package.
Melexis MLX92361 Hall-Based SOI Floating Switch
With its isolated floating output, the MLX92361 only requires power to drive the load directly.
Features
- IC positioning flexibility
- Large portfolio for the right option
- Application support
Applications
- Torque measurement
- Position measurement
- Speed measurement

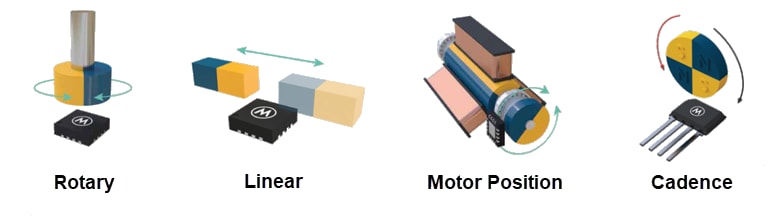

Magnetic field lines

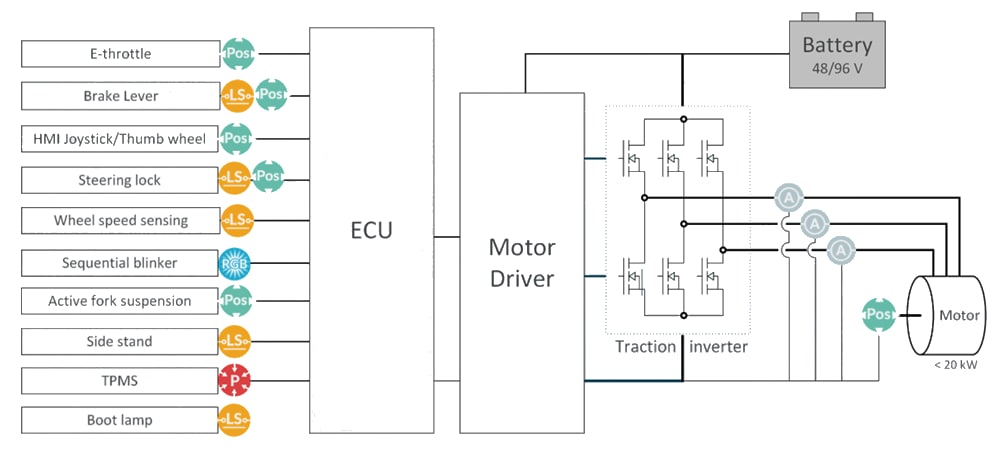

E-Scooter/Motorcycle Diagram

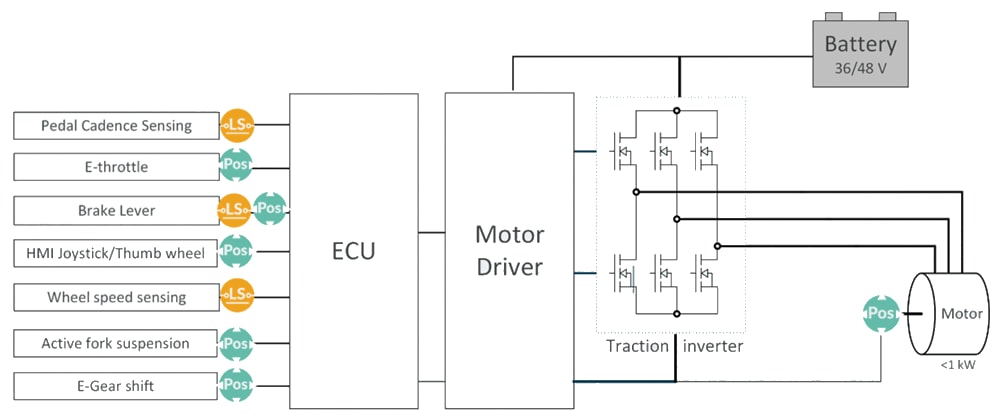

E-Bike Diagram
