Microsemi / Microchip PD70201EVB47F Evaluation Board
Microsemi / Microchip PD70201EVB47F Evaluation Board provides designers with an environment needed to evaluate the performance and implementation of Power Delivery applications based on a PD70201 device. The board features a single PD device PD70201ILQ to support the detection, Class, and Power supplying phases on four pairs of the Cat5 cable. Microsemi / Microchip PD70201ILQ supports the current of the four pairs, which is twice the level of standard IEEE 802.3at Type 2 interfaces.
Features
- Evaluates PD70201
- IEEE 802.3af/at standard compliant
- 42V to 57V operating supply voltage
- Power is supplied through the 4x pairs of the Cat5 cable
- 2x RJ45 connectors (data and power in, data out)
- Onboard power good LED indicator
- Onboard AT detected LED indicator
- Flyback topology
- Pulse transformer for routing the data to PD application to enable full PD evaluation
- 0° to +70°C operating temperature range
- 122mm x 65mm x 25mm dimensions

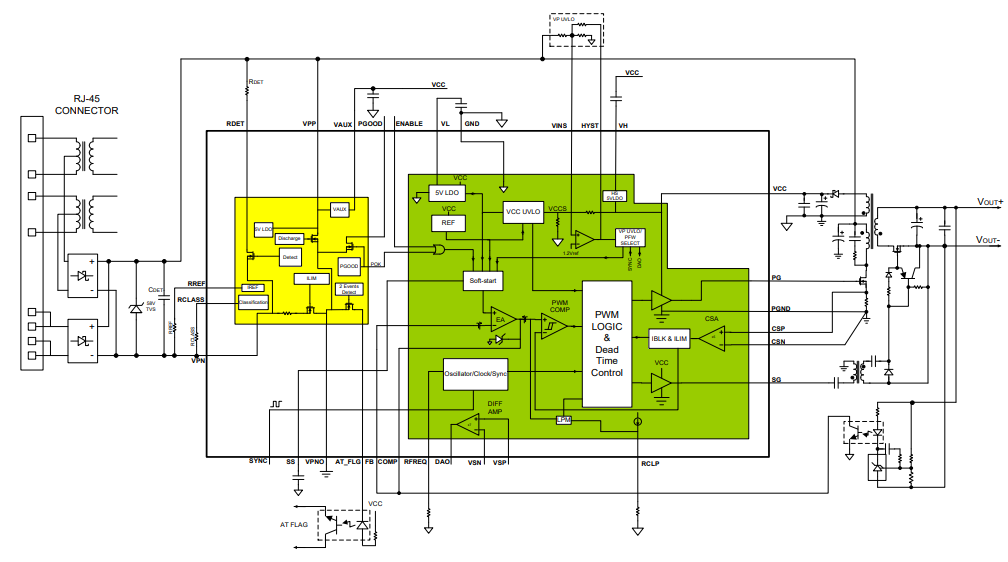

Block Diagram
