Molex MX64 Sealed Single Row Connectors
Molex MX64 Sealed Single Row Female Connectors are designed to USCAR-approved footprints and testing requirements. The MX64 connectors accommodate three different female terminal systems and are available in 1x2, 1x3, 1x4, 1x5, 1x6, and 1x8 sizes.
Features
- Meets all USCAR footprints and testing requirements for 0.64mm square-pin connector systems
- Available with or without CPA
- 4 polarization options available in 4 colors
- IP67-rated matte seals
- Accommodates 22AWG to 18AWG wires and ISO metric wires
- Integrates with automotive OEM-approved terminal systems
Applications
- Automotive sensors
- Powertrain
- Comfort, infotainment, and driver assist
- Body electronics
- Chassis and safety
- Hydraulics

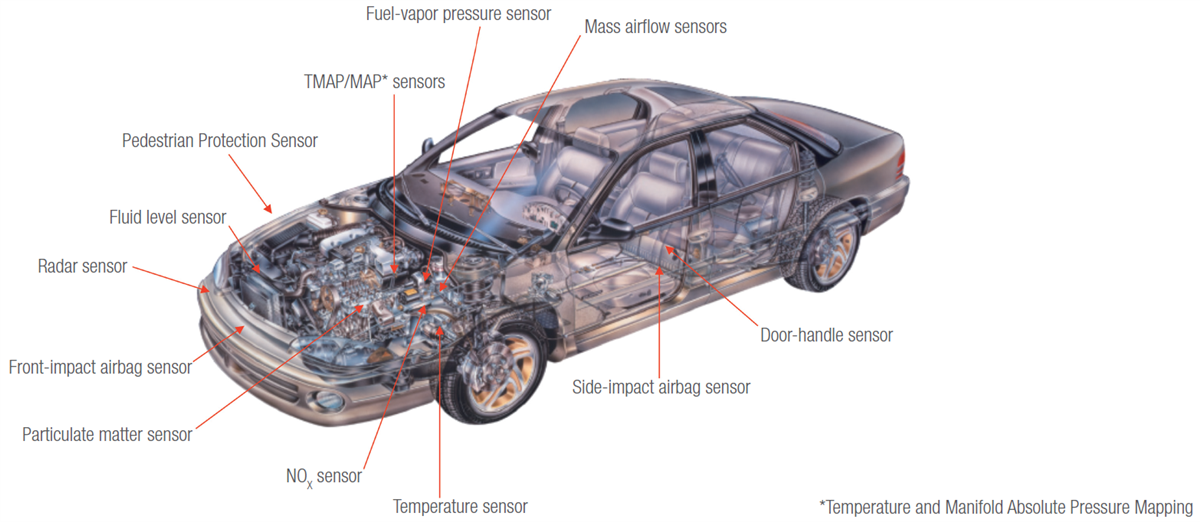

Application Example
