Nexperia DFN0606 Trench MOSFETs
Nexperia DFN0606 Trench MOSFETs are designed to utilize Trench MOSFET technology to provide low threshold voltage and very fast switching. These Nexperia MOSFETs feature electrostatic discharge (ESD) protection and are available in a leadless ultra-small DFN0606-3 (SOT8001) surface-mount (SMD) plastic package. Typical applications include mobile phones, wearable and portable devices, mobile phone accessories, headsets, earphones, and hearing aids.
Features
- Low threshold voltage
- Very fast switching
- Trench MOSFET technology
- 2N7002 functionality in a DFN0606 package
- 36% space saving compared to DFN1006
- Up to 2kV ESD protection
- 0.6mm x 0.6mm footprint, 0.37mm height
Specifications
- Ultra-low RDS(on) down to 170mΩ
- Low voltage drive (VGS(th)= 0.7V typical)
- 20V to 60V voltage range
Applications
- Mobile phones
- Wearable and portable devices
- Mobile phone accessories
- Headsets, earphones, and hearing aids
Videos
Application Note
Additional Resources

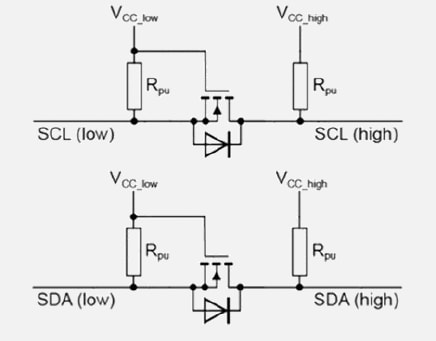

Application Circuit Diagram
Related MOSFETs
Nexperia Small-Signal MOSFETs (SSMOS) for Portables
Small WLCSP and leadless DFN packages for mobile and portable applications.
