Panasonic EEH-ZS Conductive Polymer Hybrid Capacitors
Panasonic EEH-ZS Conductive Polymer Hybrid Aluminum Electrolytic Capacitors are AEC-Q200 qualified and ideal for under-the-hood automotive applications. This series features a 25VDC to 63VDC voltage range and an endurance rating of 4000 hours at +125°C, allowing these capacitors to withstand a higher ripple current and larger capacitance. Panasonic EEH-ZS Conductive Capacitors have a nominal capacitance range of 100µF to 560µF and an operating temperature of -55°C to +125°C.
Features
- High ripple current
- Large capacitance compared to ZC series
- 4000h at +125°C endurance
- RoHS compliant
- AEC-Q200 compliant
Applications
- DC/DC Converters
- AC/DC Converters
- “Under the Hood” Automotive (135°C Parts)
- DC Side Of Both Inverter And Rectifier Circuits
Specifications
- 25VDC to 63VDC rated voltage range
- 100µF to 560µF nominal cap. range
- 11 to 15mΩ ESR
- -55°C to +125°C operating temperature

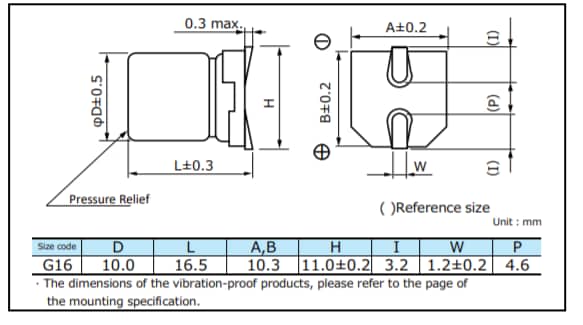

Dimensions
