Panasonic EV Charging Solutions
Panasonic offers a wide range of electronic components and devices that support charge control, communication, and human interface device requirements for electric vehicle (EV) charging applications. The demand for EV Charging Solutions increases as the EV market grows, and these EV solutions from Panasonic contribute to global environmental health concerns by reducing pollution.

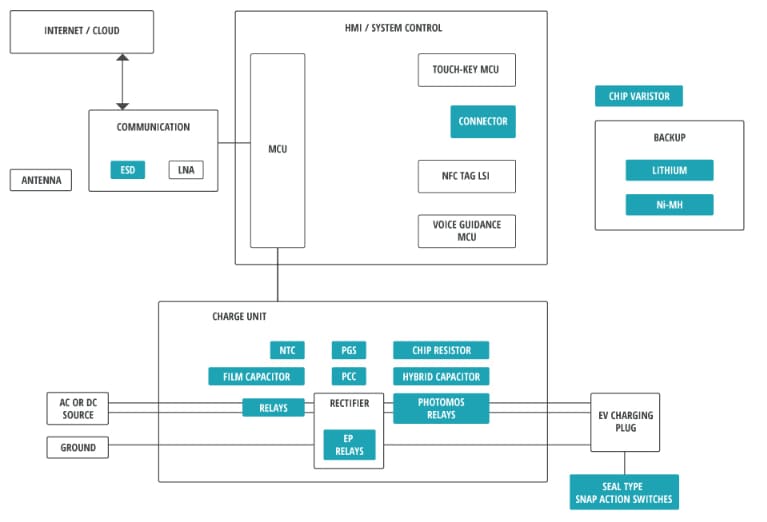

Block Diagram
Featured Components & Devices
Panasonic Industrial Devices ABS Sealed Subminiature Snap-Action Switches
Compact, high sealing performance, elastomer double-molding technology for steady sealing quality.
Panasonic Electronic Components PAN9520 Embedded Wi-Fi® Module
2.4GHz 802.11 b/g/n RF module based on Espressif ESP32-S2 that includes an Xtensa® 32-bit LX7 CPU.
Panasonic PAN9520 Evaluation Kit
All-inclusive & comprehensive kit supports rapid prototyping with PAN9520 Embedded Wi-Fi® Module.
Panasonic Electronic Components PAN9026 Wi-Fi® & BLUETOOTH® Radio Modules
Feature dual-band, 2.4/5GHz, 802.11 a/b/g/n, and BT/BLE 5.0 with a ceramic chip antenna.
Panasonic Tụ nhôm điện phân lai
Tụ điện nhỏ gọn phù hợp chuẩn AEC-Q200 đạt được hiệu suất cao và độ tin cậy cao.
Panasonic Electronic Components ECQ-UB Metallized Polypropylene Film Capacitors
High safety and high moisture resistance, acts as interference suppressors for electronic equipment.
Panasonic Electronic Components Tụ điện màng polypropylene kim loại hóa ECW-FG
Tuân thủ AEC-Q200 và có cấu tạo màng polypropylene kim loại hóa, không cảm ứng.

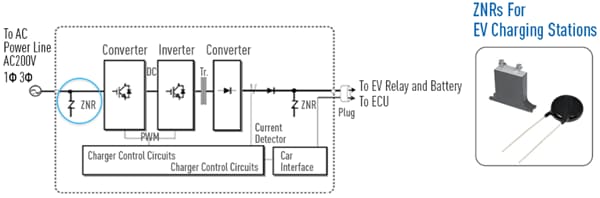

Panasonic Electronic Components ERZ-E-S1 ZNR® Transient / Surge Absorbers
Outstanding performance and -40°C to +125°C temperature range in a 14mm diameter package.
Single-Line Diagram
Relay
Relays for EV Charging
Panasonic Industrial Devices HE-S Series Power Relays
The industry's smallest and lowest operating power multi-contact high-capacity power relays.
Panasonic Industrial Devices PV Type HE Power Relays
1 Form A 35A/48A/90A power relays designed for photovoltaic power systems, compact design.

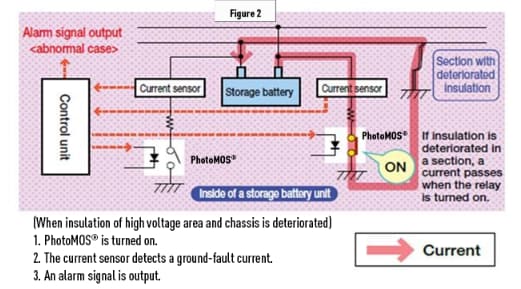

Panasonic Industrial Devices AQV258H5 PhotoMOS®
Relays that offer high-voltage switching reliability and application safety in BMS and more.
Panasonic Industrial Devices PhotoMOS®
Features low off-state leakage current and stable on-resistance over the component lifetime.
Panasonic Industrial Devices HE-R Power Relays
Offers a 12VDC to 24VDC rate coil voltage range, 80A maximum switching current, and compact size.
