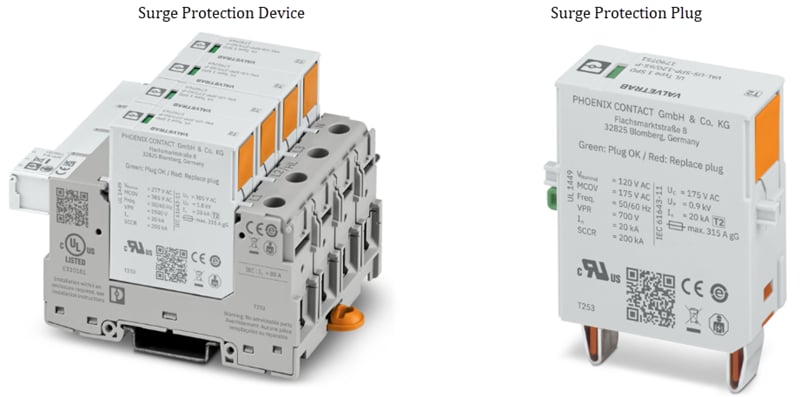

Phoenix Contact VAL-US-SPP Surge Protection Devices

Phoenix Contact VAL-US-SPP Surge Protection Devices are engineered for common North American power supply systems in accordance with NEMA standards. These UL-listed surge protectors offer robust protection, innovative installation, safety features, and easy integration. The VAL-US-SPP surge protectors also include plug‑in and modular remote signaling to simplify installation and reduce maintenance time. The reinforced insulation and rapid disconnection enhance both user safety and system operational reliability.

Features

  • Easy integration into existing systems with UL open-type listed
  • Suitable for all standard network configurations in accordance with NEMA
  • Miswiring and touch protection
  • Low tightening torque
  • Easy system status monitoring with an optical status indicator and a remote indication contact
  • Reinforced insulation between the main and auxiliary circuits
  • Improved disconnection
  • Pluggable protective devices
  • Available and can be used throughout Europe
Phoenix Contact VAL-US-SPP Surge Protection Devices
View Results ( 44 ) Page
Mã Phụ tùng Bảng dữ liệu Định mức điện áp Định mức dòng Chiều dài Chiều rộng Chiều cao Dải tần số Xếp loại dễ cháy Kiểu gắn Kiểu chấm dứt RoHS - Mouser
1790745 1790745 Bảng dữ liệu 120 VAC 80 A 71.5 mm 35.6 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790753 1790753 Bảng dữ liệu 120 VAC 80 A 71.5 mm 35.6 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790767 1790767 Bảng dữ liệu 240 VAC, 415 VAC 80 A 71.5 mm 71.2 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790790 1790790 Bảng dữ liệu 480 VAC 80 A 71.5 mm 53.4 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790799 1790799 Bảng dữ liệu 240 VAC 54.2 mm 17.5 mm 61.5 mm 50 Hz to 60 Hz UL 94 V-0 Pluggable Push-In Y
1790743 1790743 Bảng dữ liệu 120 VAC 61.5 mm 17.5 mm 54.2 mm 50 Hz to 60 Hz UL 94 V-0 Pluggable Push-In Y
1790744 1790744 Bảng dữ liệu 120 VAC 80 A 71.5 mm 17.8 mm 110.8 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790747 1790747 Bảng dữ liệu 120 VAC, 240 VAC 80 A 71.5 mm 35.6 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790748 1790748 Bảng dữ liệu 120 VAC, 240 VAC 80 A 71.5 mm 53.4 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790749 1790749 Bảng dữ liệu 120 VAC, 208 VAC 80 A 71.5 mm 53.4 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
Đã phát hành: 2026-01-28 | Đã cập nhật: 2026-02-25
