Taiwan Semiconductor BC846BWH & BC847B/CWH NPN Transistors

Taiwan Semiconductor BC846BWH and BC847B/CWH NPN Transistors are AEC-Q101 qualified small signal transistors with 200mW power dissipation. These general-purpose transistors feature 100mA collector current, making them ideal for automated placement. The BC846BWH and BC847B/CWH NPN transistors offer 625°C/W junction-to-ambient thermal resistance, 100MHz transition frequency, and 4.5pF output capacitance. These NPN transistors are RoHS compliant, halogen-free, and come in a small SOT-323 package. The BC846BWH and BC847B/CWH NPN transistors are ideally used in general switching and amplification applications.

Features

  • AEC-Q101 qualified
  • General-purpose transistors
  • 200mW power dissipation
  • 4.5pF output capacitance
  • 100MHz transition frequency
  • 625°C/W junction-to-ambient thermal resistance
  • -55°C to 150°C storage temperature range
  • Ideal for automated placement
  • Moisture Sensitivity Level-1 (MSL-1), per J-STD-020
  • SOT-323 package
  • RoHS compliant
  • Halogen-free and Pb-free

Applications

  • General switching and amplification

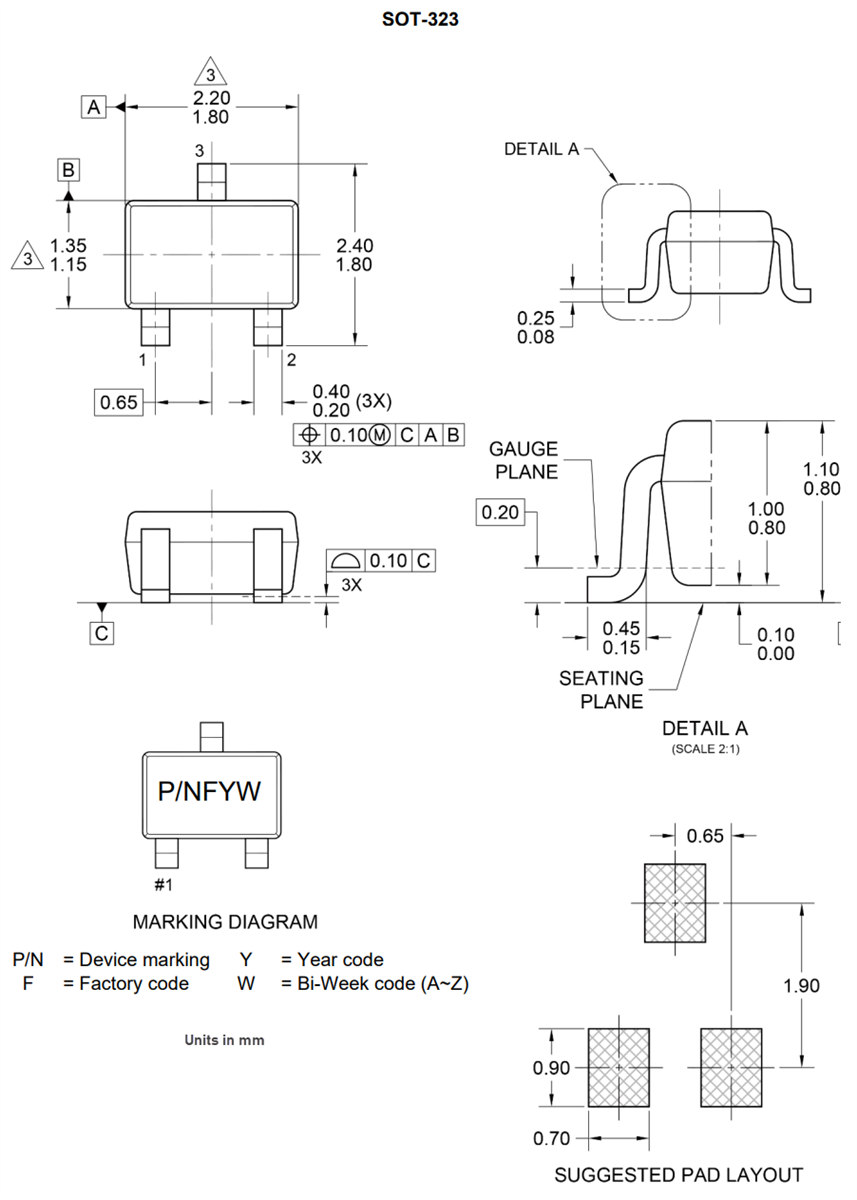

Package Dimensions

Mechanical Drawing - Taiwan Semiconductor BC846BWH & BC847B/CWH NPN Transistors

Related Transistors

Taiwan Semiconductor BC807-25H & BC807-40H PNP Transistors

300mW, AEC-Q101 qualified small signal transistors, ideal for general switching and amplification.

Learn MoreGiới thiệu về Taiwan Semiconductor BC807-25H & BC807-40H PNP Transistors View Productsliên quan đến Taiwan Semiconductor BC807-25H & BC807-40H PNP Transistors

Taiwan Semiconductor BC846BH & BC847B/CH NPN Transistors

200mW, AEC-Q101 qualified small signal transistors, ideal for general switching and amplification.

Learn MoreGiới thiệu về Taiwan Semiconductor BC846BH & BC847B/CH NPN Transistors View Productsliên quan đến Taiwan Semiconductor BC846BH & BC847B/CH NPN Transistors

Taiwan Semiconductor BC85xBWH & BC857WH PNP Transistors

200mW, AEC-Q101 qualified small signal transistors, ideal for general switching and amplification.

Learn MoreGiới thiệu về Taiwan Semiconductor BC85xBWH & BC857WH PNP Transistors View Productsliên quan đến Taiwan Semiconductor BC85xBWH & BC857WH PNP Transistors
View Results ( 3 ) Page
Mã Phụ tùng Bảng dữ liệu Điện áp cực góp-cực gốc VCBO Điện áp cực góp-cực phát VCEO tối đa Điện áp bão hòa cực góp-cực phát Dòng cực góp liên tục Độ lợi cực góp/cực gốc DC hfe Tối thiểu Độ lợi dòng DC hFE Tối đa Tích độ tăng ích dải thông fT Pd - Tiêu tán nguồn
BC846BWH RFG BC846BWH RFG Bảng dữ liệu 80 V 65 V 600 mV 100 mA 200 450 100 MHz 200 mW
BC847BWH RFG BC847BWH RFG Bảng dữ liệu 50 V 45 V 600 mV 100 mA 200 450 100 MHz 200 mW
BC847CWH RFG BC847CWH RFG Bảng dữ liệu 50 V 45 V 600 mV 100 mA 420 800 100 MHz 200 mW
