Vishay Semiconductors High-Power, High-Speed Infrared Emitters
Vishay VSMB294x/VSMY2853 High-Speed, High-Power Infrared Emitters consist of an adapted lens radius to provide wide ±25° and ±28° angles of half intensity. The resulting typical radiant intensity ranges from 20mW/sr to 35mW/sr at a 100mA drive current. Saving space over lensed PLCC2 solutions, the IR emitters are available in compact top-view 2.3mm x 2.3mm x 2.5mm gullwing and reverse gullwing packages, and 2.3mm x 2.55mm x 2.3mm side-view packages. These offer fast switching speeds and low forward voltages, as the Vishay devices feature GaAIAs surface emitter chip (VSMY2853), double hetero (VSMF2893), and multi-quantum well (VSMB2943, VSMB2948) technologies.
Features
- Adapted lens radius
- Wide ±25° and ±28° angles of half intensity
- 20mW/sr to 35mW/sr typical radiant intensity range at 100mA drive current
- Fast switching speeds
- Low forward voltages
- GaAIAs surface emitter chip (VSMY2853), double hetero (VSMF2893), and multi-quantum well (VSMB2943, VSMB2948) technologies
- Compact packaging
- 2.3mm x 2.3mm x 2.5mm gullwing and reverse gullwing
- 2.3mm x 2.55mm x 2.3mm side view

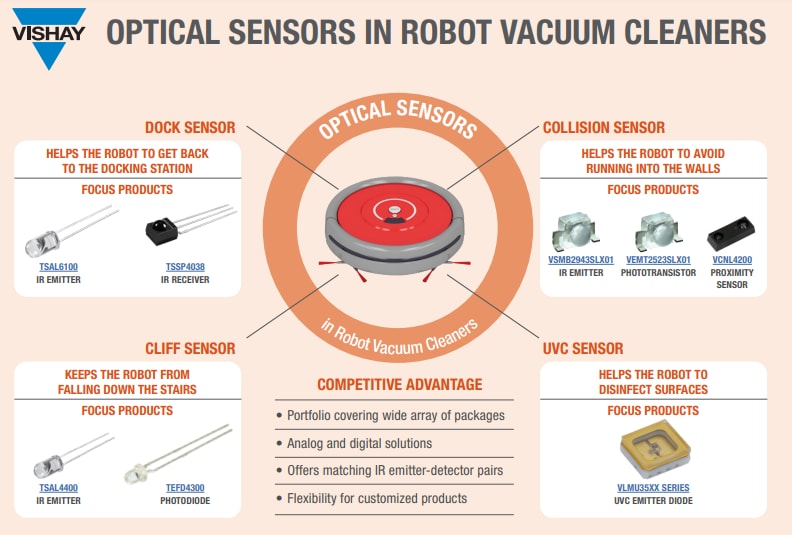

Infographic
Additional Resources
Related Products
Vishay Semiconductors IR Emitters & Silicon PIN Photodiode
High-speed 850 and 940nm IR emitters and package-matched high-speed silicon PIN photodiode.
Vishay Semiconductors SurfLight™ IR Emitters
Offered in a wide variety of packages including PLCC-2, Rev Gullwing, Gullwing, and 0805.
Vishay Semiconductors VSMY98545 High Power Infrared Emitting Diodes
Surface emitter technology with high radiant power and high speed.
Vishay Automotive IR Emitters
Used in a wide range of consumer, medical, industrial, and automotive applications.
View Results ( 71 ) Page
| Mã Phụ tùng | Bảng dữ liệu | Mô tả | Định mức công suất |
|---|---|---|---|
| VSMY2853RGX01 |  |
Infrared Emitters INFRARED EMITTER | 55 mW |
| VSMY5940X01 | |
Infrared Emitters 940 nm Hi Speed SurfLight | 200 mW |
| VSMY12850 | |
Infrared Emitters SurflightVCSEL 850nm 16mW/sr, +/-40deg. | 140 mW |
| VSMY2850RG | |
Infrared Emitters SurflightVCSEL 850nm 100mW/sr, +/-10deg. | |
| VSMY2940RGX01 | |
Infrared Emitters SurflightVCSEL 940nm 145mW/sr, +/-10deg. | 170 mW |
| VSMY385010-GS08 | |
Infrared Emitters 850nm 1.6V 60deg 40mW 130mW/sr | |
| VSMY2890GX01 | |
Infrared Emitters IR EMI H-PWR H-SPEED 890NM SMD | |
| VSMY2893SLX01 | |
Infrared Emitters IR EMI DH H-SPEED 890NM | |
| VSMY294310G | |
Infrared Emitters IR Emit HPower HSpeed 940nm SMD GW | |
| VSMY3850X01-GS08 | |
Infrared Emitters HIGH SPEED IR SURF.EMIT.DIODE |
Đã phát hành: 2013-04-04
| Đã cập nhật: 2024-09-23
